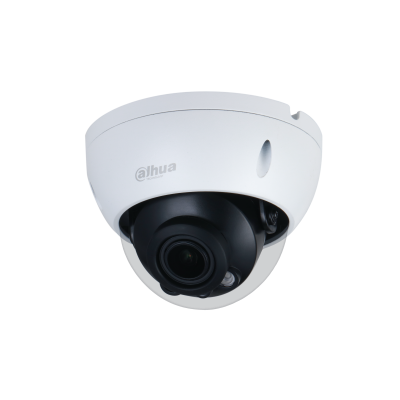

Dahua Dome 1080p Varifocale 2.7~12 mm 12V IR 30 m HAC-HDBW1200R-Z-S5

2MP HDCVI IR Dome Camera
* The parameters and datasheets below can only be applied to 1200-S5 series
> Max 30fps@1080P
> HD and SD output switchable
> 2.7-12mm motorized lens
> Max. IR length 30m, Smart IR
> IP67, IK10, DC12V

Tempi di consegna:

1-7 giorni lavorativi

62,85 IVA inc

Dome 1080p Varifocale 2.7~12 mm 12V IR 30 m

Image Sensor 1/2.7 inch CMOS
Effective Pixels 1920(H)×1080(V), 2MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s
S/N Ratio >65dB
Minimum Illumination 0.02Lux/F1.7, 30IRE, 0Lux IR on
Fill Light Working Distance 30 m (98.4 ft)
IR On/Off Control Auto; manual
IR LED Number 2
Pan/Tilt/Rotation Range Pan: 0°–355°
Tilt: 0°–75°
Rotation: 0°–355°
Lens Type Motorized vari-focal
Auto Focus N/A
Mount Type φ14
Focal Length 2.7 mm-12 mm
Max. Aperture F1.7
Field of View Diagonal: 38°– 125°

Horizontal: 33°–102°

Vertical: 19°– 53°

Iris Type Fixed iris
Close Focus Distance 1.2 m (3.9 ft)
DORI Distance Detect Observe Recognize Identify
2.7mm 49.7 m (163.1 ft) 19.9 m (65.3 ft) 9.9 m

(32.5 ft)

5 m

(16.4 ft)

12mm 82.8 m (271.7 ft) 33.1 m (108.6 ft) 16.6 m (54.5 ft) 8.3 m

(27.2 ft)

Frame Rate CVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps;
AHD: 1080P@25/30fps; 720P@25/30fps;
TVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps;
CVBS: 960H
Resolution 1080P (1920×1080); 720P (1280×720); 960H (960× 576/960×480)
Day/Night Auto switch by ICR
White Balance Auto; manual
Gain Control Auto; manual
Noise Reduction 2D NR
Smart IR Yes
Electronic Defog Yes
Mirror Off/On
Privacy Masking Off/On (8 area, rectangle)
Certifications CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Power Supply 12V ±30% DC
Power Consumption Max 6.3W (12V DC, IR on)
Operating Temperature -30°C to +60°C (-22°F to 140°F);<95% (non-condensation)
Storage Temperature -30°C to +60°C (-22°F to 140°F);<95% (non-condensation)
Protection Grade IP67, IK10
Casing Plastic dome cover+mental upper casing+mental pedestal
Camera Dimensions φ122.0 mm × 88.9 mm ( φ4.80″ × 3.50″ )
Net Weight 0.44 Kg (0.97 lb)
Gross Weight 0.7 Kg (1.54 lb)
COD: HAC-HDBW1200R-Z-S5 Categoria:
