SERIE 7200 HTHITempi di consegna:

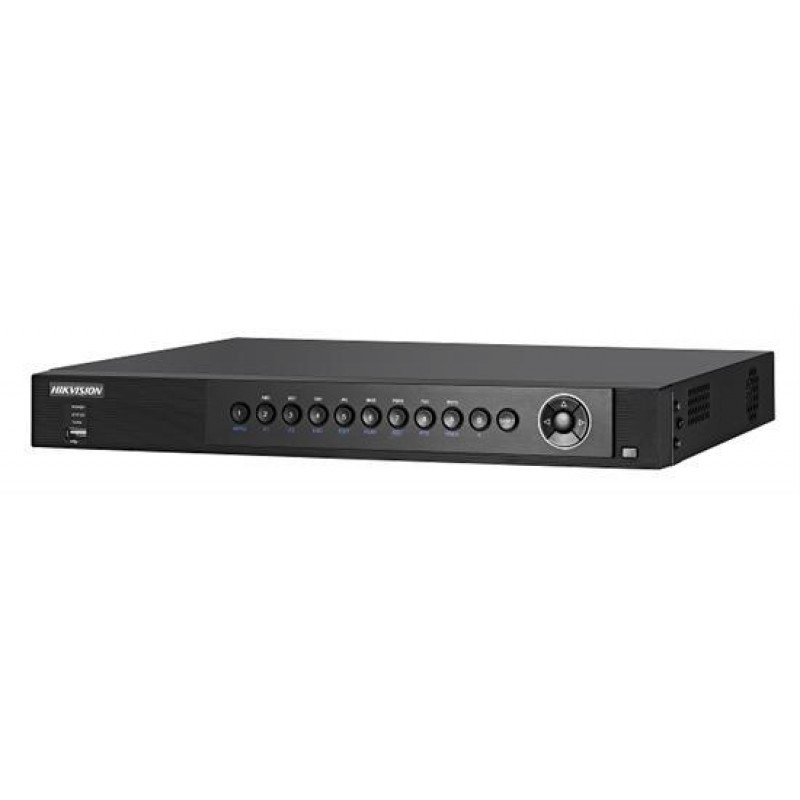

Hikvision DS-7204HUHI-F1/N HDD NON INCLUSO
DVR SERIE 72
1-7 giorni lavorativi
Availability:
4 disponibili
€75,00 IVA inc
4 disponibili
| Video/Audio Input | ||
|---|---|---|
| Audio Input: | 4-ch | |
| Video Compression: | H.264,H.264+ | |
| Analog and HD-TVI video input: | 4-ch,BNC interface (1.0Vp-p, 75 Ω)connection | |
| Supported camera types: | Support HDTVI input: 3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz, | |
| Video Input Interface: | BNC (1.0 Vp-p, 75Ω) | |
| Audio Compression: | G.711u | |
| Audio Input Interface: | 4-ch RCA (2.0 Vp-p, 1 KΩ) | |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) | |
| Video/Audio Output | ||
| CVBS Output: | 1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704×576,NTSC:704×480 | |
| HDMI/VGA Output: | 1-ch,4K (3840 × 2160)/30Hz,2K(2560 ×1440)/60Hz, 1920 ×1080/60Hz, 1280 ×1024/60 Hz, 1280 ×720/60Hz, 1024 ×768/60 Hz | |
| Recording resolution: | Mainstream:3Mp@15fps/1080p/720p/WD1/4CIF Sub-stream:WD1/4CIF@12fps(non-real-time);CIF/QVGA/QCIF(real-time) | |
| Frame Rate: | Main stream:3 MP@15fps;1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream:WD1/4CIF@12fps;CIF/QVGA/QCIF@25fps (P)/30fps (N) | |
| Video Bit Rate: | 32 Kbps-10 Mbps | |
| Stream Type: | Video/Video&Audio | |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) | |
| Audio Output: | 1-ch RCA(Linear, 1kΩ) | |
| Audio Bit Rate: | 64kbps | |
| Dual Stream: | Support | |
| Playback Resolution: | 3MP/1080P/720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF | |
| Synchronous Playback: | 4-ch | |
| Network management | ||
| Remote connections: | 128 | |
| Network protocols: | TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnPâ„¢, HTTPS,ONVIF | |
| Hard Disk Driver | ||
| Interface Type: | 1 SATA Interface | |
| Capacity: | Up to 6 TB capacity for each disk | |
| External Interface | ||
| Network Interface: | 2; 10M / 100M / 1000M self-adaptive Ethernet interfaces | |
| USB Interface: | 1 USB 2.0 Interface & 1 USB 3.0 Interface | |
| Serial Interface: | 1; standard RS-485 serial interface, half-duplex | |
| Alarm Input: | 4-ch | |
| Alarm Output: | 1-ch | |
| General | ||
| Power Supply: | 12V DC | |
| Consumption: | ≤ 20W(without hard disks) | |
| Working Temperature: | -10 ºC ~+55 ºC (14 ºF ~ 131 ºF) | |
| Working Humidity: | 10% ~ 90% | |
| Chassis: | Standard 1U chassis | |
| Dimensions: | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) | |
| Weight: | ≤2 kg(4.4lb) | |
